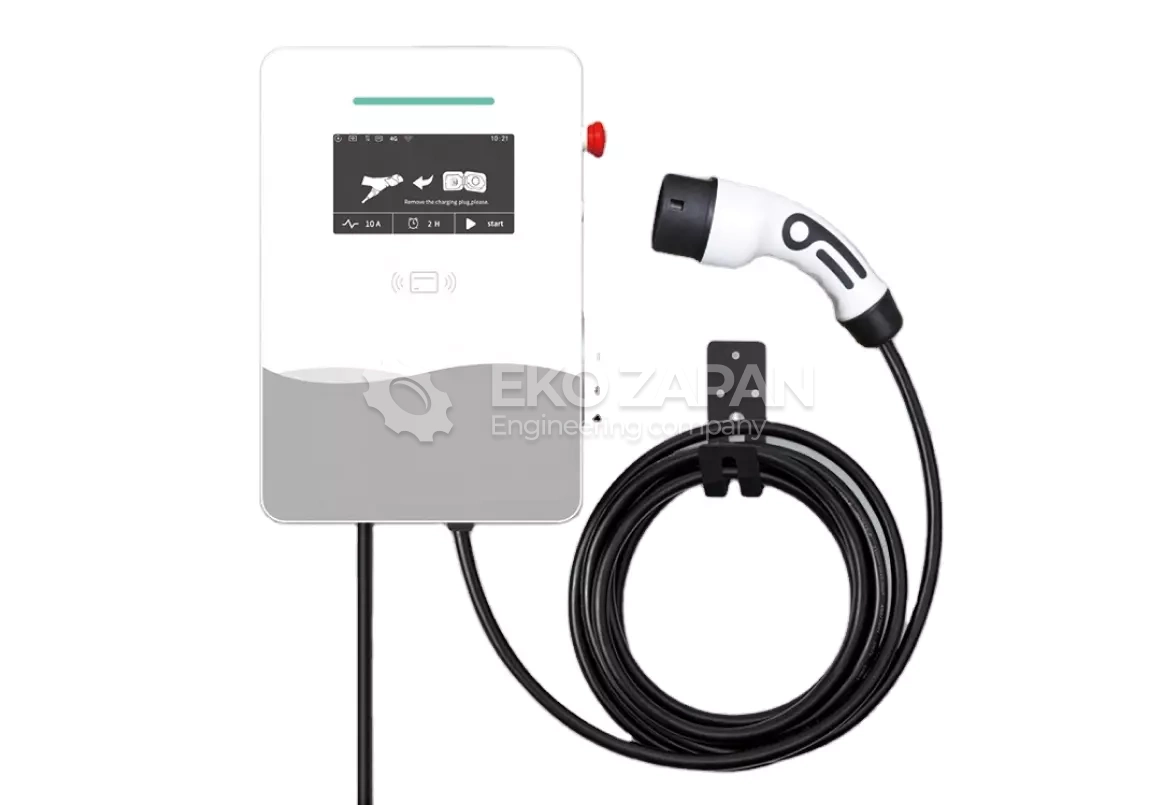

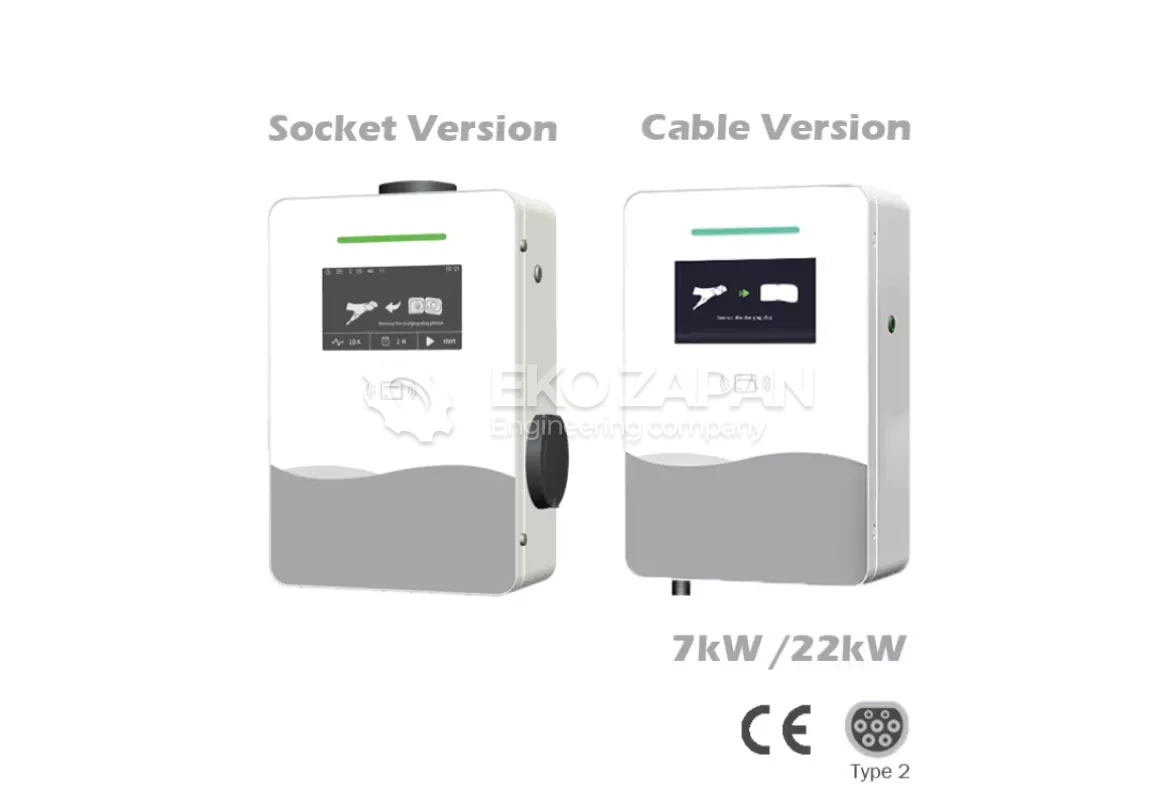

Wall-mounted electric vehicle charger with a power of 7 kW with a Type 2 AC Wallbox Connector

Grasen Wall Charger for electric vehicles provides a high-quality, yet cost-effective electric vehicle charging point, which is designed to provide fast charging in mode 3 for each electric vehicle (EM/GEV). With integrated OCPP, the charger is easily connected to our cloud-based charging management system for convenient operation, monitoring and maintenance. Features: • IEC 61851-1 fast charging mode 3 • IEC 62196 Type 2 cable connector • Charging speed - 7 kW (32 A) • Built-in overload and short circuit current protection • Built-in LED charging status indicator • Certified MID energy meter • Built-in Type B RCD • Degree of protection IP 54 according to IEC 60529 • CE certification • Full support for OCPP 1.6J commands

Introduction to Wall Charger for Electric Vehicles

The Level 2 charging station is compatible with all electric vehicles and hybrid electric vehicles with mains charging. Level 2 chargers have a cord that plugs directly into the car.

Depending on the battery technology used, it usually takes 4 to 6 hours to charge a fully discharged battery. Charging time may increase at low temperatures. Level 2 chargers are typically installed in residential areas, public parking lots, workplaces, and commercial environments.

Features of the wall charger for electric vehicles

This product offers controlled variable power for EM. Designed with module integration. It has multifunctional protection, user-friendly interface, automatic charging control. This product can carry out real-time communication with the monitoring or operation management center via RS485, Ethernet, 3G/4G GPRS. It can download the charging status in real time, monitor the charging cable connection status. If the connection is disconnected, charging stops immediately to ensure the safety of people and the car. This product can be installed in public parking lots, residential areas, supermarkets, roadside parking lots, etc.

The use of a wall charger for electric vehicles

The Level 2 charging station is also permanently installed in some public areas outside the electric vehicle and provides a controlled single-phase or three-phase alternating voltage for the on-board charger of the electric vehicle. It should be noted that the AC power station itself does not have a charging function. It simply provides power output, and the battery of the electric vehicle can be charged by connecting the internal charger of the electric vehicle. Since the power of the on-board charger of an electric vehicle is usually low, the AC charging station cannot charge quickly, and it is also called slow charging. The output power of the AC charging station will not be very large, usually 3.5kW, 7 kW, 15 kW, 22 kW, etc.

Advantages of a wall charger for electric vehicles

These products have a beautiful design, convenient cable storage, recording charging information via cards and the implementation of billing, electricity consumption data, identification functions. According to various requests, we can charge depending on the time, amount of electricity and amount. Built-in voice prompt function, user-friendly for voice operation. Support 4G wireless, wired, WiFi network function, combined with mobile applications for networking. It is also equipped with a smart lock to improve the use of electric vehicle charging infrastructure.

Charger functions for Type 2 electric vehicles

1. A charging station with built-in measurement, control and protection functions such as operation status monitoring, fault status monitoring, charging measurement and billing, and coordinated management during the charging process.
2. With the function of protection against lightning, overload, short circuit and current leakage.
3. The AC output is equipped with a smart AC meter to measure electricity when charging. With advanced communication function, it can upload measurement data to the charging station controller and internet platform.
