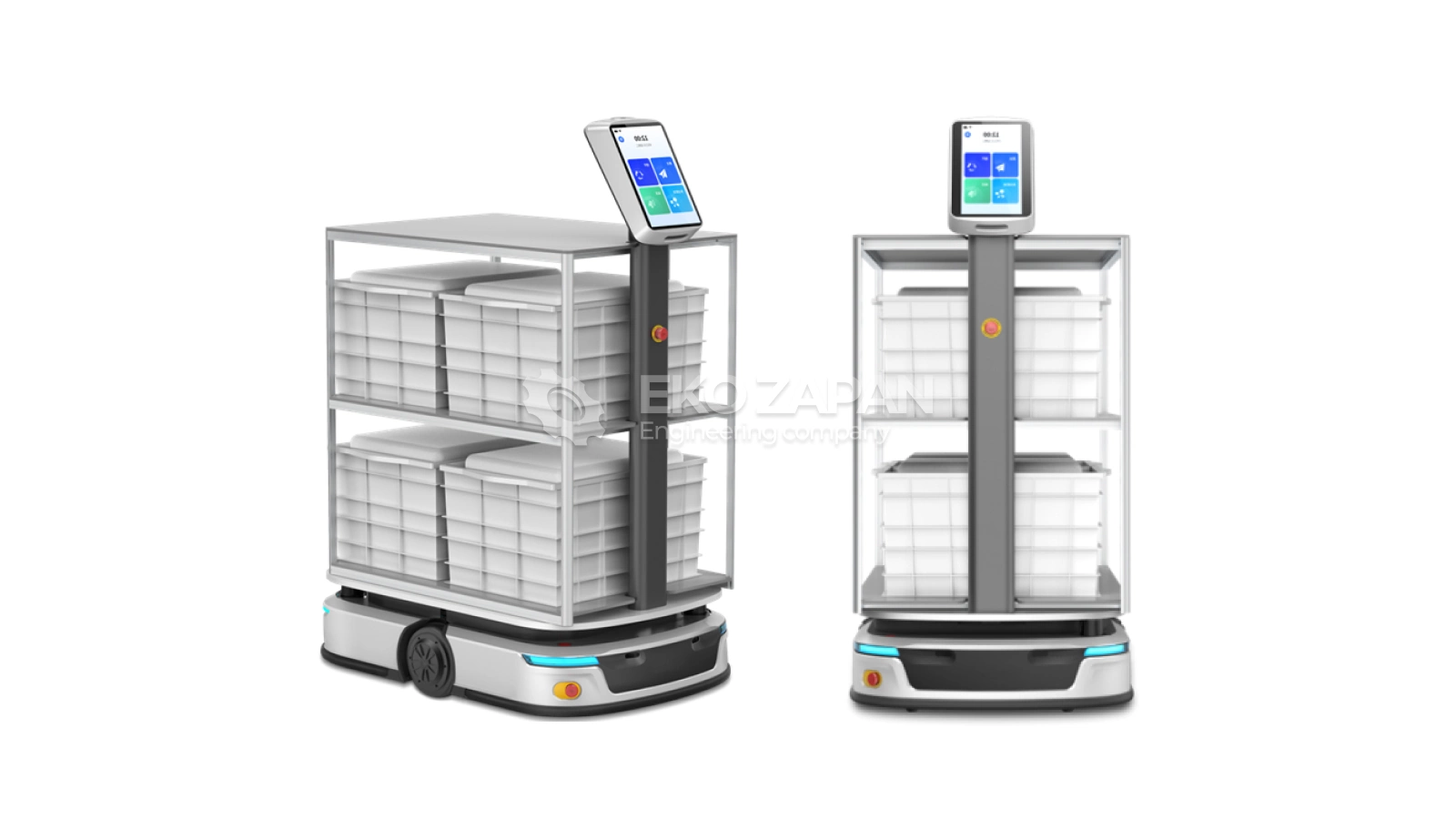

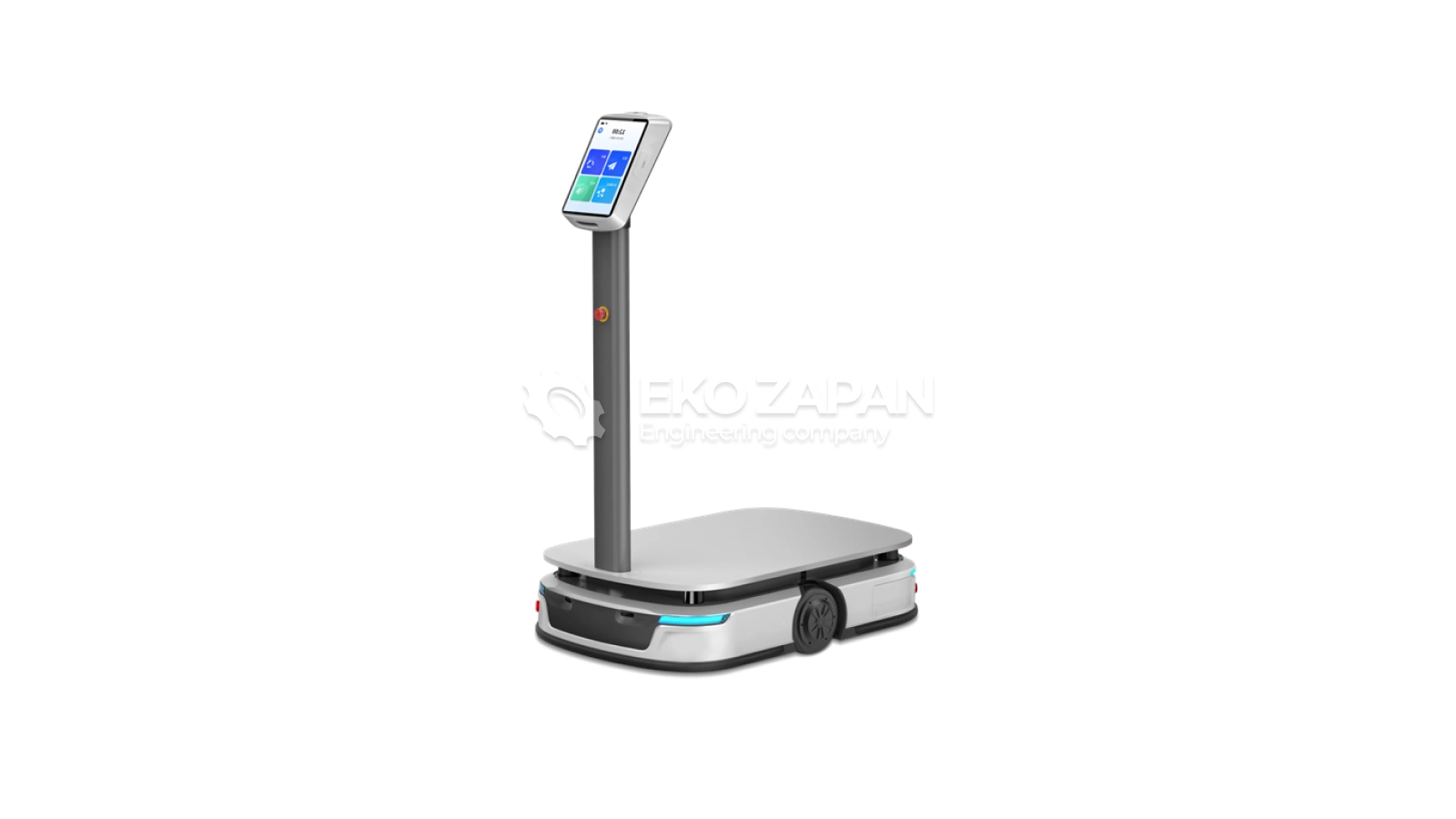

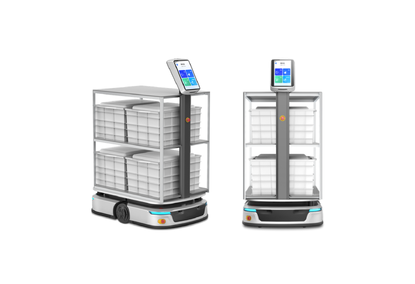

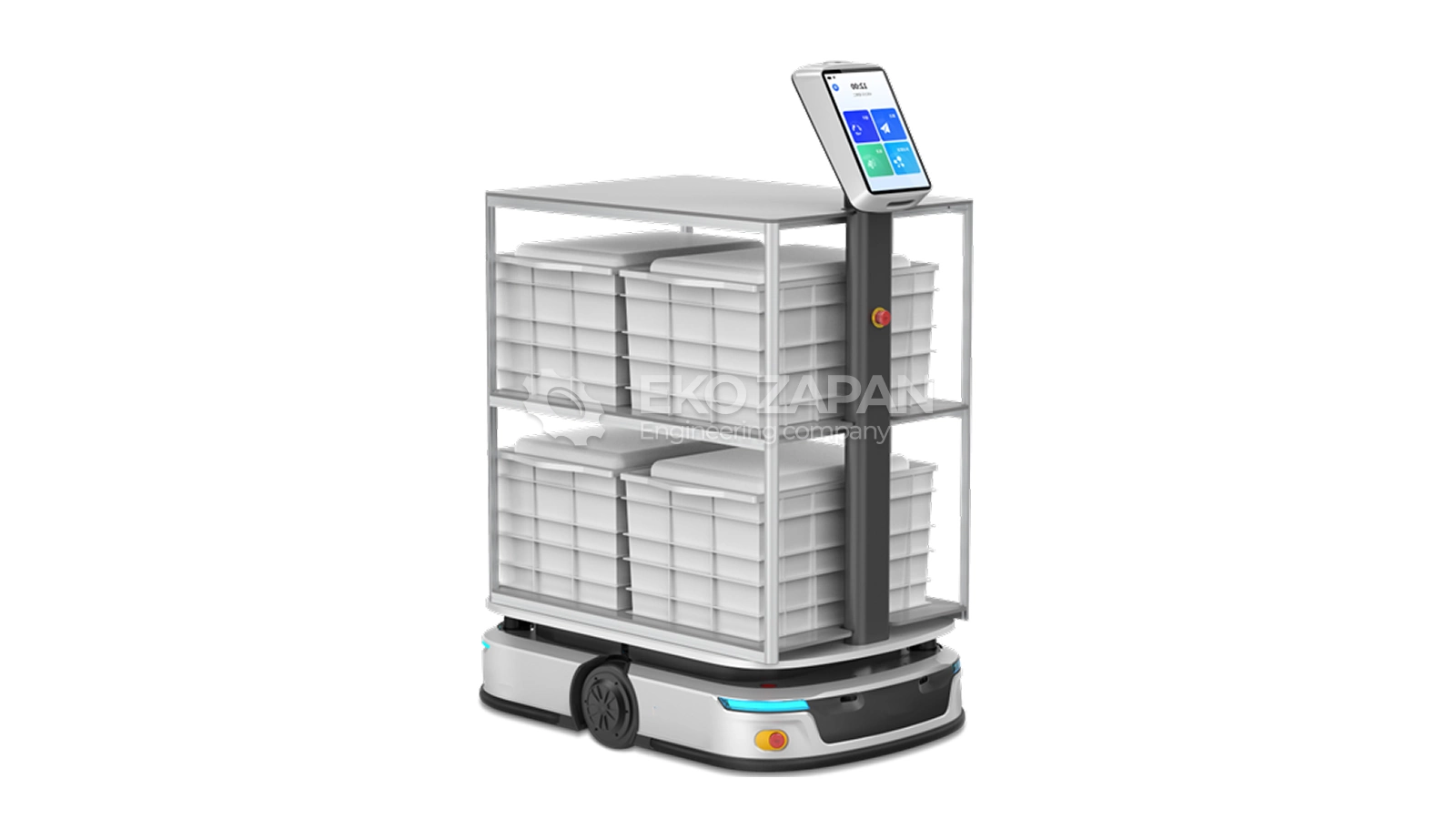

S100 Mobile Transportation Robot
ZapanRobot
Web-site:
https://zapan-robot.ru/
Email:
info@zapan-robot.ru
Why Choose Us?
- Reputation of a reliable supplier.
- Flexible payment system.
- Positive customer reviews.
- Comfortable leasing conditions.
- Wide partner network.
- Own company in China.
- Extensive experience.
- Strong team.
Direct connection with the manufacturer
From 16 300 $
Article: 2760
It may take some time for a response.
Specifications
Features
| Characteristic | Parameter |
| Dimensions of the robot | 925×620×1282 mm |
| Device weight | 90.6 kg |
| Maximum load capacity | 120 kg |
| The speed of movement | up to 1 m/s (at full load) |
| Battery life | up to 8 hours |
| Charging time | 2.5 hours |
| Battery Type | removable ternary lithium battery, 48 V, 12 Ah |
| The gap between the floor and the chassis | up to 25 mm |
| Maximum height of the obstacle | up to 10 mm |
| Bridging the gap | up to 35 mm |
| Maximum tilt angle | 5° |
| Minimum aisle width | 900 mm |
| Standard shelf size | 865×600×800 mm |
| Maximum shelf size | 913×616×800 mm |
| Precision of positioning on a point | ±10 cm, ±10° |
| Driving mode | Unidirectional, rotatable in place (360°) |
| OS | Linux (control) + Android (interface) |
| Display | 10.1", 1280×800 (touch) |
| Ways of interaction | touch, light, voice |
| Application languages | Chinese, English, Japanese, Korean, Thai |
| Communication support | Wi-Fi, 4G, LoRa |
| Operating temperature | from 0 to +50 ℃ |
| Humidity | from 5% to 95% RH |
| Storage temperature | up to 55 ℃ |
| Noise level | less than 60 dB |
| Materials | aluminum alloy and ABS plastic |
4.9
4
S100 — это автономный робот для транспортировки грузов весом до 120 кг на производствах, складах и в сервисных зонах. Он использует лазерную систему и визуальные метки для навигации с точностью ±10 см.
Время автономной работы — до 8 часов. Поддерживается автоматическая зарядка и быстрая замена аккумулятора для непрерывной эксплуатации. Робот может работать в группе до 10 устройств и интегрируется с системами WMS и MES.
