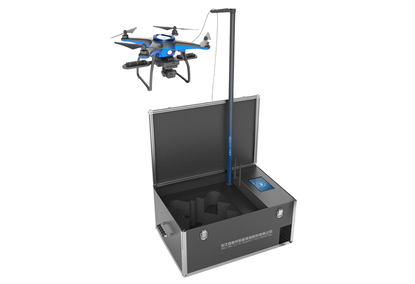

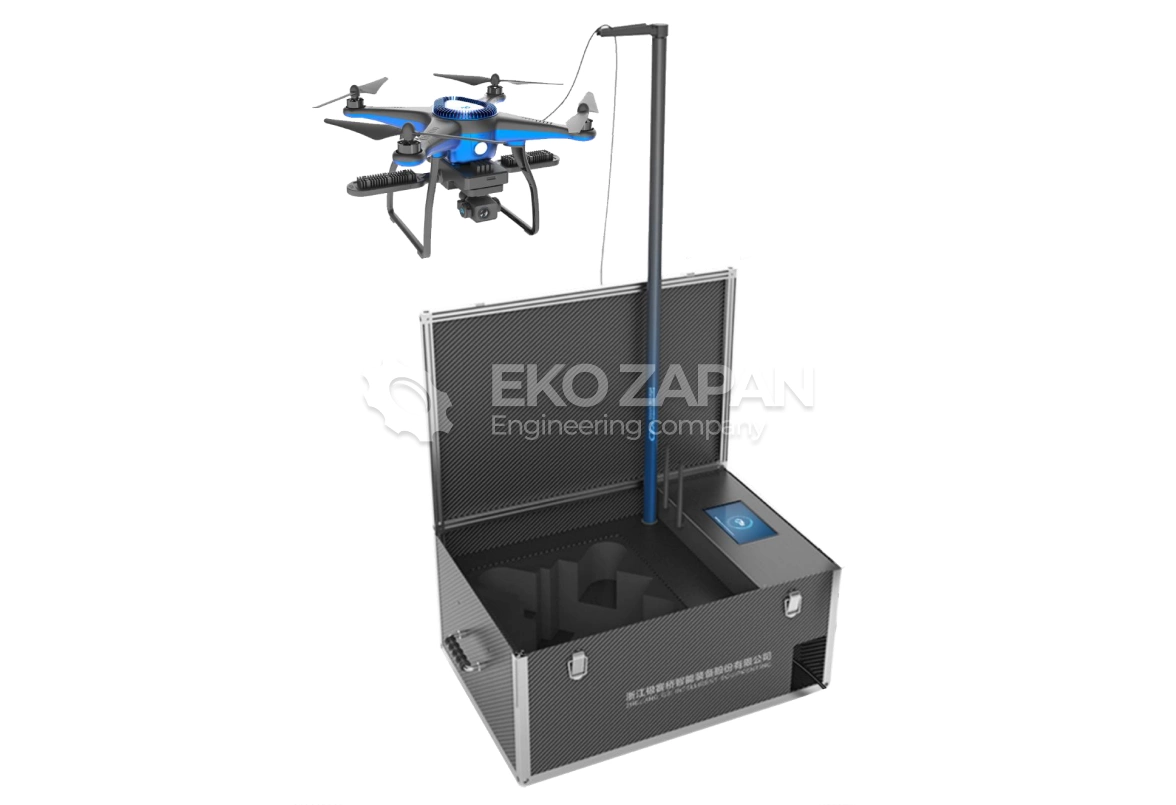

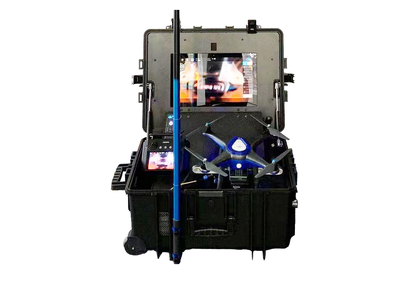

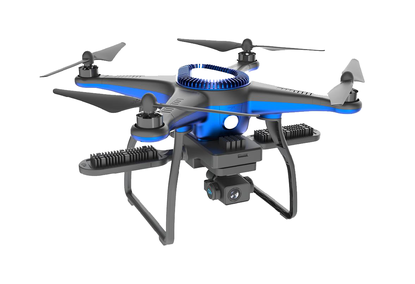

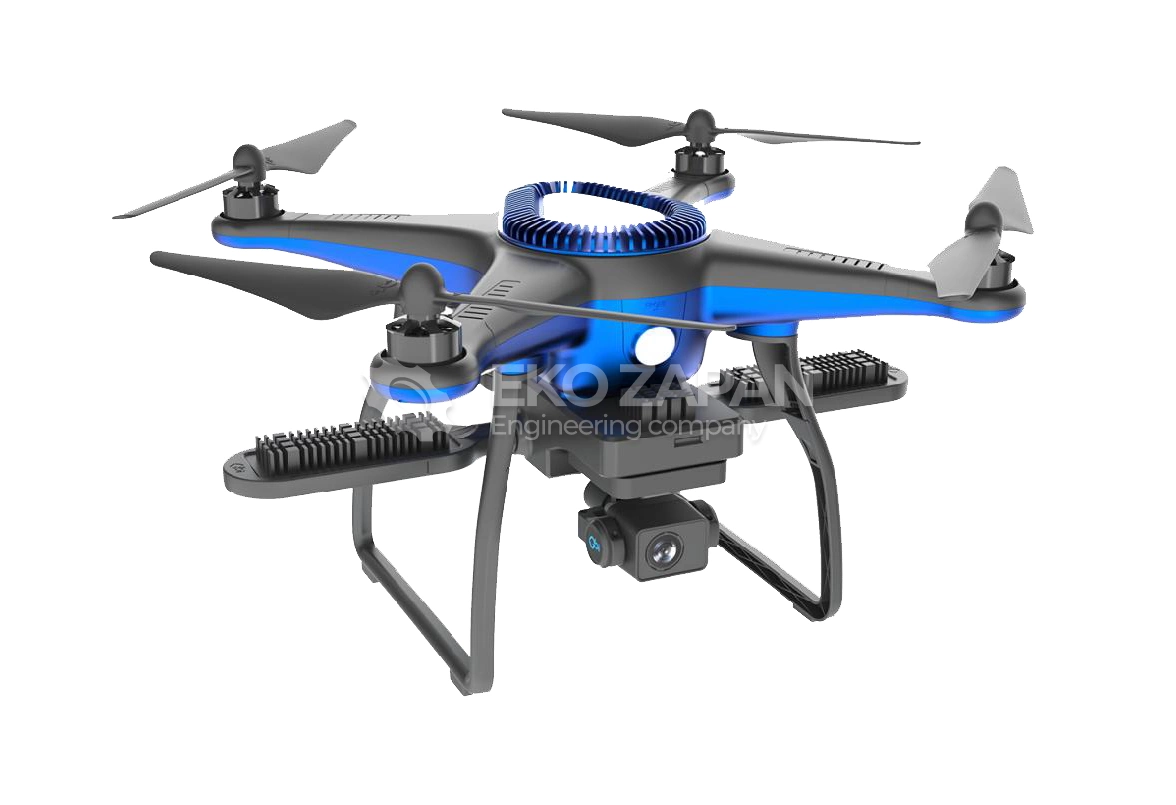

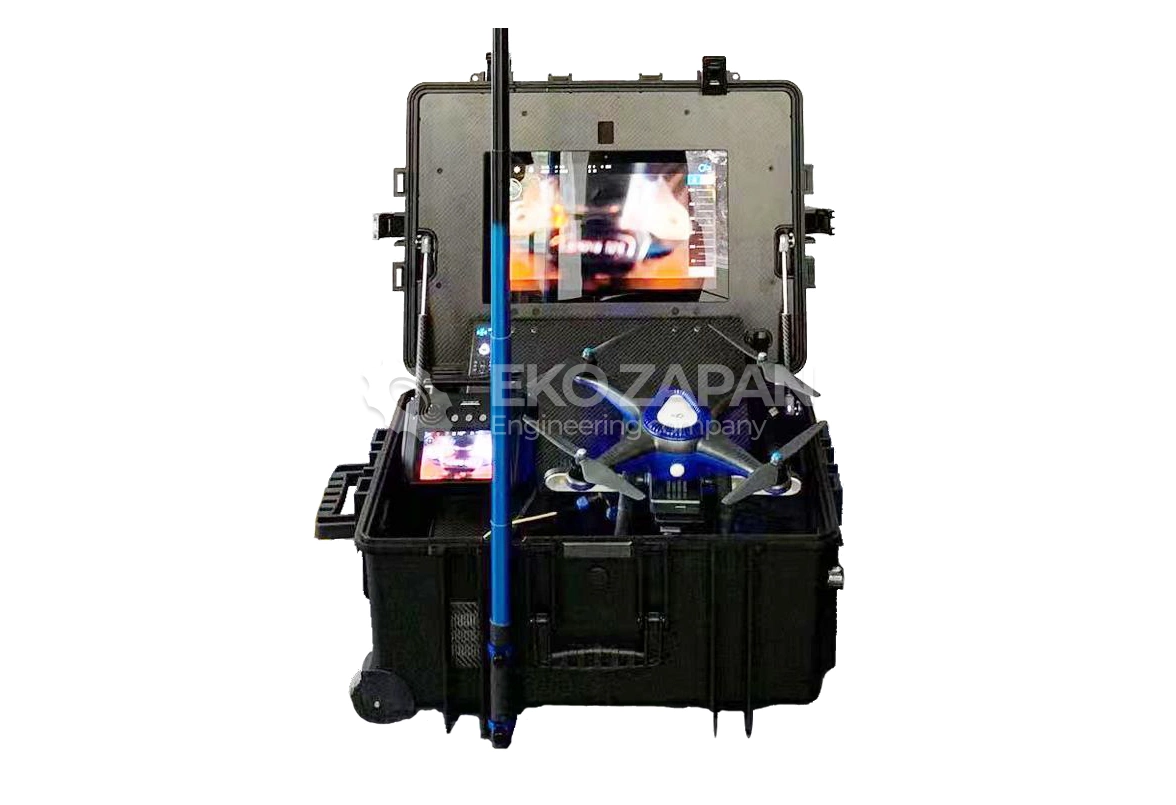

Integrated tethered drones with lighting and video monitoring

The G6LVS, G7L, GBI2020-I and GBI2021LV series of drones are advanced solutions that combine powerful emergency lighting with high—quality video surveillance and real-time broadcast capabilities. These complexes are designed for situations where it is important not only to illuminate the territory, but also to monitor the situation remotely.

Advantages and purpose

The models in this series are equipped with high-resolution cameras, high-power LED modules, wireless control and are capable of operating in any climatic conditions. Their application covers safety, rescue operations, construction, mass events and emergency response.

Key Features

• Combined solution: lighting + video
• Full HD cameras with broadcast support
• Control: wireless and wired
• Easy launch: No professional pilot required
• Possibility of long continuous operation (≥240 hours)

Model range

G6LVS — Video + Lighting + Live Streaming

• LED power: 600W (3 sources)
• Luminous flux: 80,000 lumens
• Lighting area: 8000 m2
• Cable length: 50 meters
• Camera: support Full HD 1080p, real-time streaming
• Wind resistance: Grade 7
• Working up to 240 hours

G7L Video — Lighting + Gyro stabilization video

• LED Power: 600W
• Luminous flux: 80,000 lumens
• Lighting area: 8000 m2
• Cable length: 50 meters
• Camera: HD with gimbal, broadcast and recording
• Protection class: IP67
• Wind resistance: Grade 7
• Working up to 240 hours

GBI2020-I — Powerful Searchlight drone

• LED Power: 600W
• Luminous flux: 100,000 lumens
• Lighting area: 5000 m2
• Cable length: 50 meters
• Control: Wireless
• Wind resistance: Grade 6
• Working up to 240 hours

GBI2021LV — Video surveillance + LED lighting

• LED Power: 600W
• Luminous flux: 80,000 lumens
• Lighting area: 8000 m2
• Cable length: 50 meters
• Camera: with suspension, Full HD (1080p) broadcast
• Wind resistance: Grade 7
• Working up to 240 hours

Areas of application

• Search and rescue operations
• Lighting and video surveillance of construction sites
• Perimeter security and rapid response
• Holding mass events and festivals
• Technical support of night work

Equipment

• Drone with spotlight and camera
• Tethered cable (50 m)
• A case for storage and transportation
• Control panel (wired and/or wireless)
• User's Instructions

Conclusion

A series of tethered drones with video monitoring are universal solutions for those who need not only to illuminate an object, but also to monitor what is happening in high resolution. The combination of light, camera and wireless control makes these complexes indispensable in the most demanding tasks.
