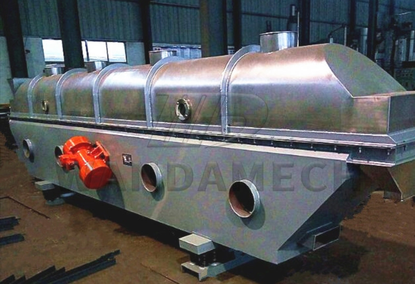

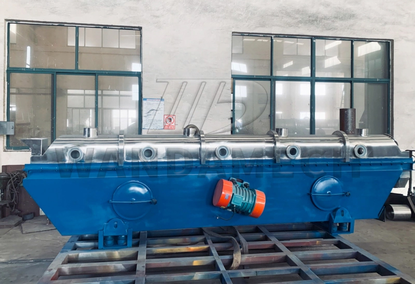

Automatic Drying Equipment for horizontal grain

Product Description

The fluidized bed vibrating dryer is a reinforced drying equipment for special purposes, which is usually used for the final drying of materials. The fluidization of the material during the drying process is supported by mechanical vibration, which contributes to the turbulence of the boundary layer and increases heat and mass transfer, as well as ensures stable mechanical operating conditions of the equipment. The equipment has a good drying function and can be combined with cooling, sieving and material transportation processes. It is widely used in the sugar, chemical, plastic industries, dairy products, salt production, as well as in the mining and metallurgical industries.

Main Features

1. The raw materials are heated evenly, heat exchange is fully used, high drying performance. Energy efficiency is 30% higher compared to conventional dryers.
2. Vibration is generated by the motor, which ensures stable operation, convenient maintenance, low noise and long service life.
3. The fluidized state is stable, without dead zones and the phenomenon of destruction.
4. Good adjustment and wide applicability: the thickness of the raw material layer, the movement speed inside the machine and the overall amplitude are adjustable.
5. Minimal damage to the surface of the raw material, the equipment is suitable for drying easily broken materials and provides a good drying effect, even if the raw material has an abnormal shape.
6. The fully sealed design prevents cross contamination between raw materials and air, ensuring a clean working environment.

The principle of operation

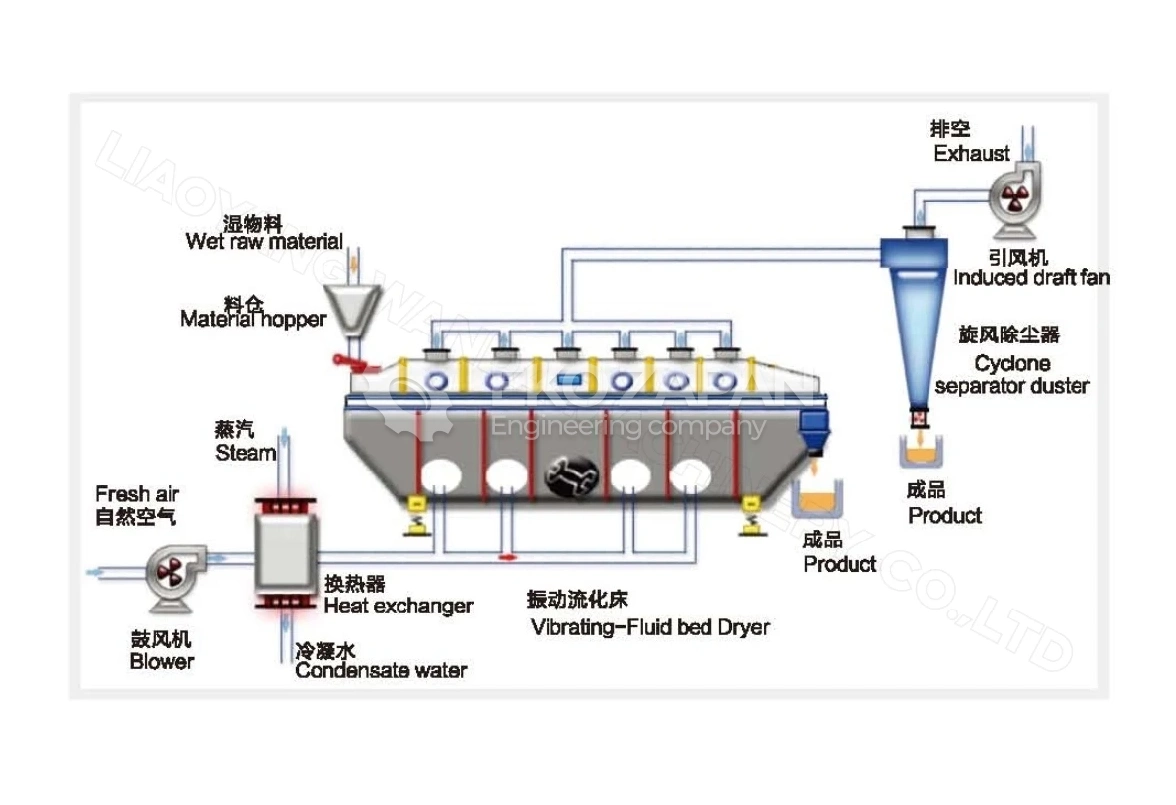

The raw material is fed into the fluidized bed dryer through the inlet and moves forward under the action of vibration. Hot air passes through the fluidized bed and exchanges heat with wet raw materials. Humid air is discharged through a cyclone and a dust collector, and dry raw materials are discharged through the outlet.

Application

It is suitable for drying, cooling and humidifying powdered and granular materials in the chemical, food, filing and mining industries. It can be used simultaneously for drying, cooling and humidification.

• Chemical industry: catalysts, polyvinyl chloride, light calcium carbonate, anhydrous sodium sulfate, etc.
• Food industry: monosodium glutamate, sugar, refined salt, distillery grains, bone glue, bean paste, etc.
• Light industry: washing powder, corn germ, starch, etc.
• Others: mineral powder, metal powder, coke, steel shavings, bait, furfural, quartz sand, toner, quartz, abrasives, fertilizers, seeds, herbs, bone meal, asbestos, wood shavings, etc.

Features of raw materials

1. The material particles are too large or irregularly shaped and require fluidization.
2. A low fluidization rate is required to preserve the integrity of the particles.
3. Materials are sticky or temperature sensitive.
