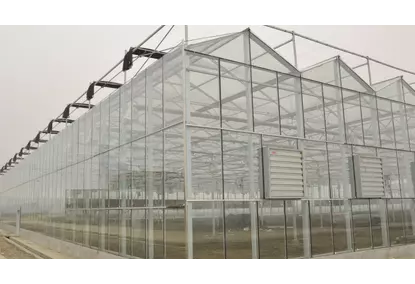

Greenhouses using VENLO technology

Why Choose Us?

Reputation of a reliable supplier.
Flexible payment system.
Positive customer reviews.
Comfortable leasing conditions.
Wide partner network.
Own company in China.
Extensive experience.
Strong team.

From 100 $/m²

Article: 1413

Specifications

Description

Category	Description
Constructive	Reinforced steel frame, protected from corrosion by hot-dip galvanizing, coating thickness 200 microns, with aluminum drainage trays
Width	4 m, 4.5 m, 5 m
Height of columns	From 4 m to 7 m
Standard span width	8.0 m, 9.6 m, 12.0 m, 12.8 m
Standards	Calculations according to SP 20.133330.2011 Loads and impacts
Wind pressure	Corresponds to the wind area (N/m2 roof surface)
Type of ventilation	Side / top; manual / electrically operated
Snow load	Corresponds to the snow area (N/m2 ground surface)
Gain	A lattice truss for overlapping large spans, preventing changes in the location of vertical columns and various bends of the structure
Ventilation	The panes located on the roof in a staggered manner and are part of the translucent roof covering, which open using the mechanisms of the ventilation system

4.9 7

VENLO type industrial greenhouses are complex engineering structures with a high level of technology. They usually occupy vast territories in hectares and require significant investments. They implement a high level of automation of plant growing processes and microclimate management.

In such greenhouse complexes, the processes of storage, sorting, packaging, and sometimes processing of agricultural products are often organized. When designing the VENLO industrial greenhouse complex, it is important to carefully work out the logistics of all necessary operations to save time and prevent possible mistakes in the future.

Description of Venlo greenhouses

Construction

Venlo greenhouses have a variety of design options for structural elements, including farms, which are manufactured according to individual customer requirements.

Equipment

Each model of the Venlo greenhouse is equipped with the necessary technological equipment.

This kit includes:

Hydroponic trays or shelving,
Climate control systems,
Auxiliary components, including lighting systems, protective screens, CO2 fertilization and assimilation illumination systems,
Fertigation and irrigation systems,
Heating systems, boilers and gas piston installations,
Carts for harvesting and so on.

Foundation

Depending on the bearing capacity of the soil, the foundation of Venlo greenhouses can be bored or pile-driven. Concrete or galvanized steel columns with dimensions 140x140x1000 (1200/1400) mm are installed under each internal steel column. Holes for foundation elements are drilled in the ground with a diameter of 50-60 cm to a depth exceeding the level of soil freezing.
