Line for slicing, drying, washing and freezing fruits and vegetables

Parameter	Meaning
Voltage	380 V
Power	Individual
Material	SUS 304 Stainless Steel
Appointment	Washing fruits and vegetables
Function	Multifunctional
Efficiency	According to the customer's requirements
Packaging	Individual
Country of origin	China
Production capacity	100-3000 kg/h

Product Description

A line for slicing, drying, washing and freezing fruits and vegetables.

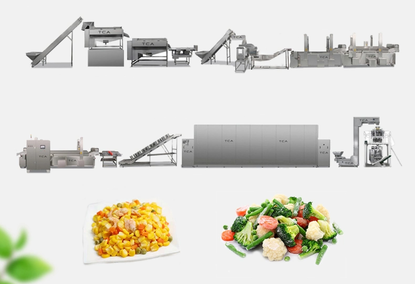

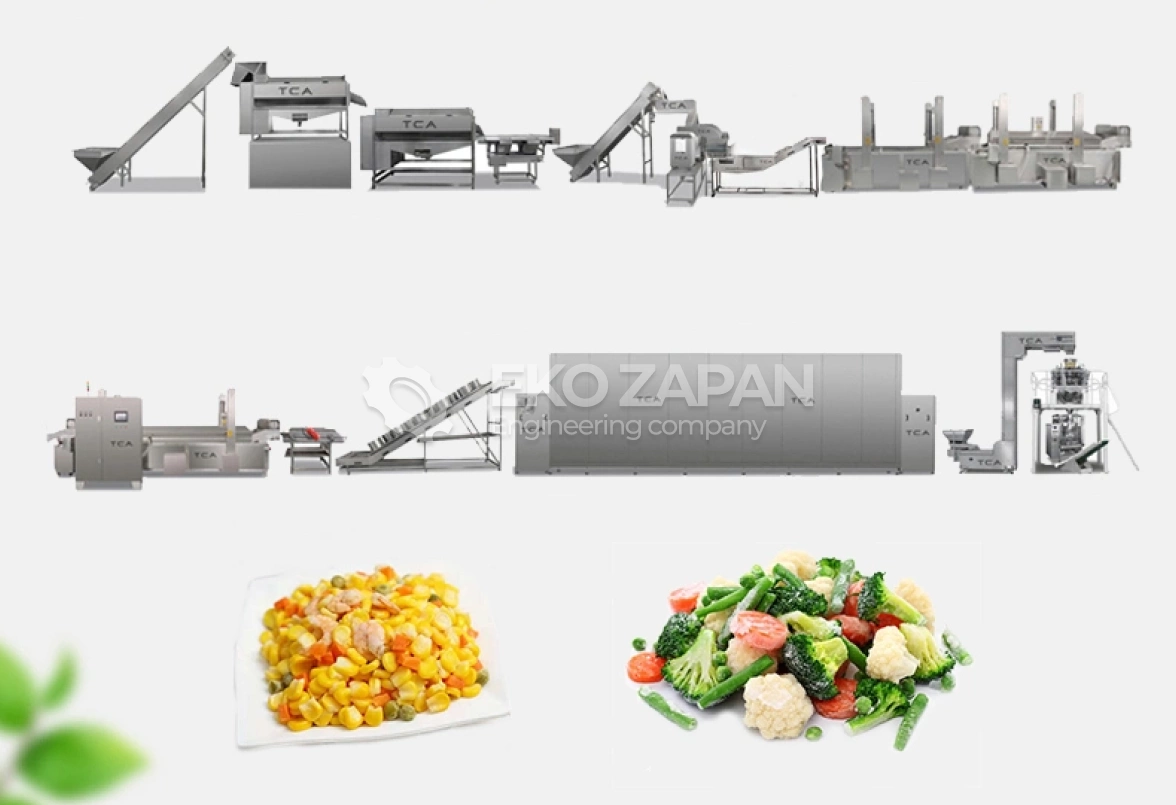

This production line is designed for processing salads from fruits and vegetables, includes cutting, drying, washing and freezing by IQF (fast freezing) method. The line consists of several devices, each of which performs a specific function.

Device Settings

Device	Model	Dimensions (mm)	Power	Material
Elevator	TSJ-5000*600	500012003000	0.75 kW	SUS304
Brush Washing Machine	QXJ-2400	28009502720	4.55 kW	SUS304
Washing and cleaning machine	QP J-2400	28009501670	4.55 kW	SUS304
Inspection and Trimming line	TJX-4000	400014001500	0.55 kW	SUS304
Washing and lifting device	TSJ-3500	300012003000	0.55 kW	SUS304
Cubic Cutter	QDJ	127010001460	0.75 kW	SUS304
Ribbon Cutter	QCP2000	1820x810x1210	1.47 kW	SUS304
French Fries Cutter	QTJ-1000	10606901040	1.5 kW	SUS304
A machine for removing the middle	ZDS-2500	250014002200		SUS304
Grain Calibrator	DCJ-2000	200010001600	1.5 kW	SUS304
Bubble Washing Machine	QXJ-6500	6500×2200×2000	10 kW	SUS304
Blanching Machine	PTJ-6500	6500×2000×2000	12 kW	SUS304
Cooling line	QXJ-4500*800	450018002000	9 kW	SUS304
Air cooler	SJH-20AD	20007501290	22.8 kW	SUS304
Conveyor with fan	SSJ-5000	500020003200	0.75 kW	SUS304
Vibrating Machine	ZDS-2000×1200	2000×1200×3000	0.1 kW	SUS304
Fluidization Instant Freezer	SDJ-1500	14500×4000×3100	30 kW	SUS304
Conveyor belt	SSJ-2000	2000×700	0.75 kW	SUS304

The principle of operation

Grain crops are loaded to the top using a bucket elevator. The feeding device ensures that the equipment is fully filled during operation. An exhaust fan delivers hot air inside the tower, creating conditions for mixing hot air with food. Most of the drying air is recycled, which minimizes fuel consumption. The moisture generated during drying is removed through the dryer's exhaust system.

Frequently Asked Questions

What is your factory's production experience?

23 years of experience in the production of food processing equipment. We are a leading supplier in China.

What types of products do you produce?

The main direction is equipment for the production of frozen French fries and chips, vegetable and fruit processing lines, equipment for meat products (for example, hamburger patties and chicken nuggets), vacuum fryers, etc.

How does your after-sales service system work?

We provide a one-year warranty and lifetime service after a year. We carry out installation, commissioning and training of personnel.

Can you help with the design of the production line for special requests?

Yes, we provide customized designs from experienced mechanical designers.

Can you help us develop a complete production line for the layout of our factory?

Yes, we provide line design services after receiving the plant location plan from the customer.
