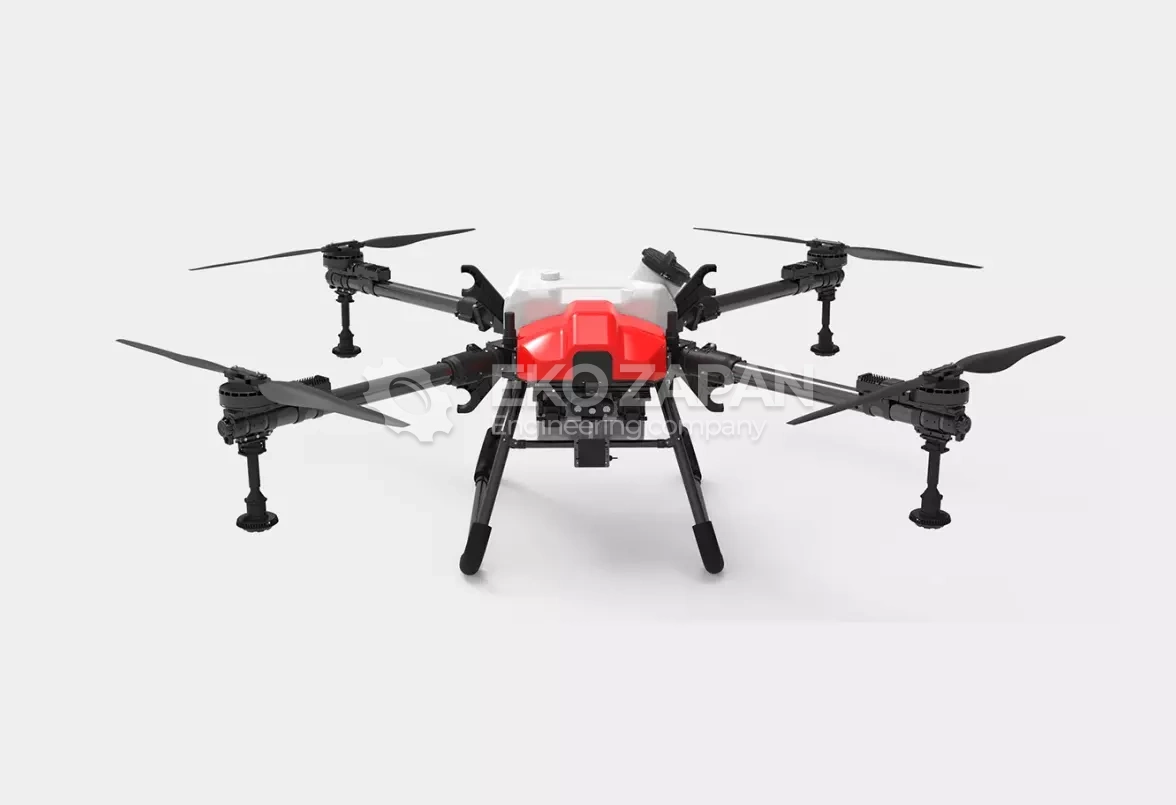

The agricultural drone is 4-axis and has a load capacity of up to 40 kg

Why Choose Us?

From 13 100 $

Article: 2668

Specifications

Parameter	Meaning
Model	HF T30-4
Installation	Modular
Liquid contents	Medicine, disinfectant
The form of spraying	Sector
Tank capacity	30 liters
Power supply	Electric
Housing material	Aviation Carbon Fiber, Aviation Aluminum
Type	The drone
Unfolded size	1570 1570 715 mm
Folded size	845 860 775 mm
Weight	27 kg (without battery)
Tank capacity	30 liters
The nozzle	Nozzle for high-efficiency spraying
Liquid consumption	8 liters/min
Spray efficiency	8-12 ha/hour
Spray width	6-9 m (about 1.5-3 m from the height of the crop)
Battery	14s 28000mAh (300-500 cycles)
Charging time	10-20 minutes (from 30% to 99%)
Maximum take-off weight	55 kg when sprayed, 68 kg when scattered (near sea level)
Maximum flight altitude	30 m
Maximum wind resistance	8 m/s
Maximum flight speed	10 m/s
Hanging time	9 minutes (with full spray), 8 minutes (with full spreading)
Pump	Brushless Electric drive pump
The charger	High Voltage Intelligent Charger

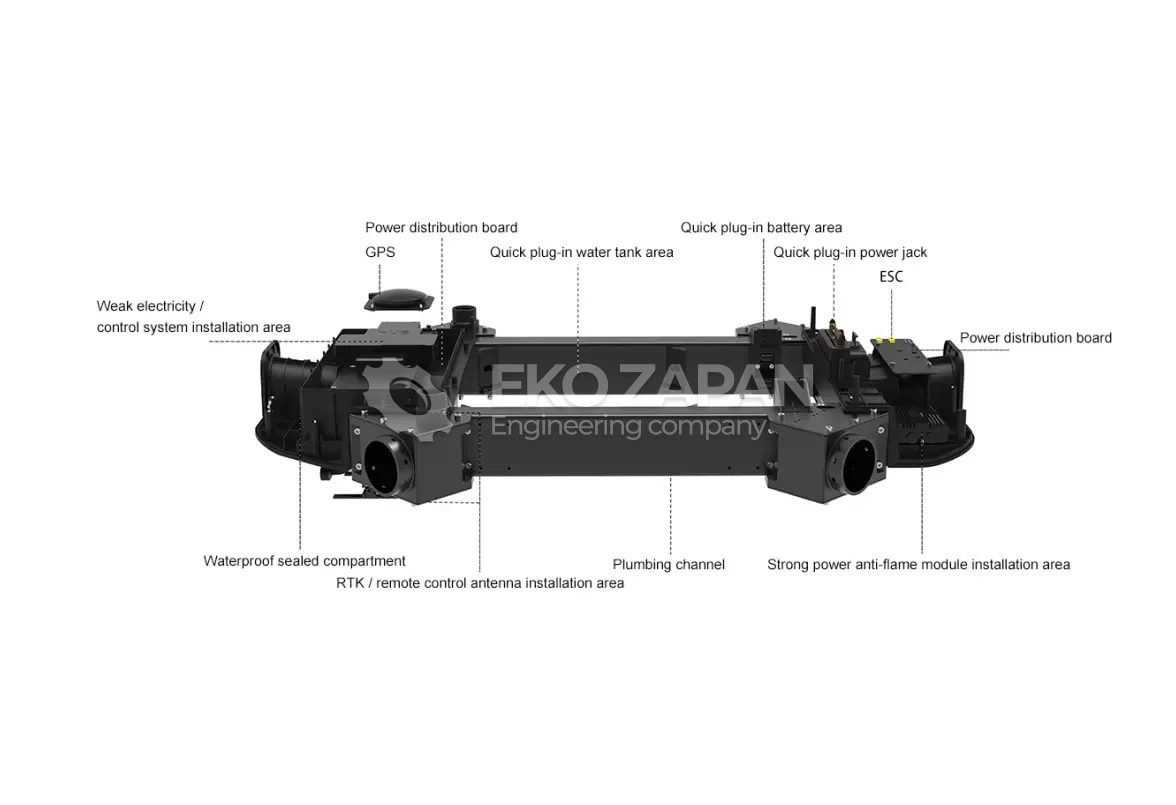

Housing design	Monolithic frame, modular design, high strength and compatibility
Connectors and installation	Quick-release modules, integrated head, waterproof module
Housing protection	IP65 (dust and water resistant)
Packaging	Cardboard box (optional wooden box)
Package size	84.50cm * 86.00cm* 77.50cm
Package Weight	27 kg
Brand name	HongFei
Country of manufacture	China

Feature	Description
Compactness and mobility	Easy folding design, fast movement, easy operation
Versatility	Suitable for spraying and spreading
The scatter system	Accurate and efficient system for seed and fertilizer distribution
Application	Rice sowing, pasture restoration, fish feeding, fertilization and pellets
Stability	Stable design, high spreading accuracy
Compatibility with control systems	Compatible with RTK systems, high-precision navigation
Battery solutions	The ability to choose between smart and standard plug-in batteries

Effective spraying. Thanks to the large tank capacity and high-performance pump, the drone is able to efficiently handle large areas in a short period of time.
Precision agriculture. The ability to accurately control and adjust the parameters of spraying and spreading contributes to improving the quality of crop processing.
Modular design. Convenient for transportation and maintenance, the modular design allows you to quickly disassemble and assemble the drone, which simplifies its operation in various conditions.

This drone is ideally suited for large-scale agricultural operations, ensuring high efficiency and accuracy in completing tasks.
