UAV with accessories, 8-axis drone, sprayers for agriculture, 72 l

Basic information

Packaging and Delivery

Product Description

Features

A new generation plant protection expert:

1. Full 360 degree coverage.
2. High-quality flight control, intelligent battery, aviation grade 7075 aluminum construction to ensure stable flight and safe operation.
3. Functions of GPS positioning, autonomous flight, terrain tracking.
4. Export to many countries and regions, high stability and durability.

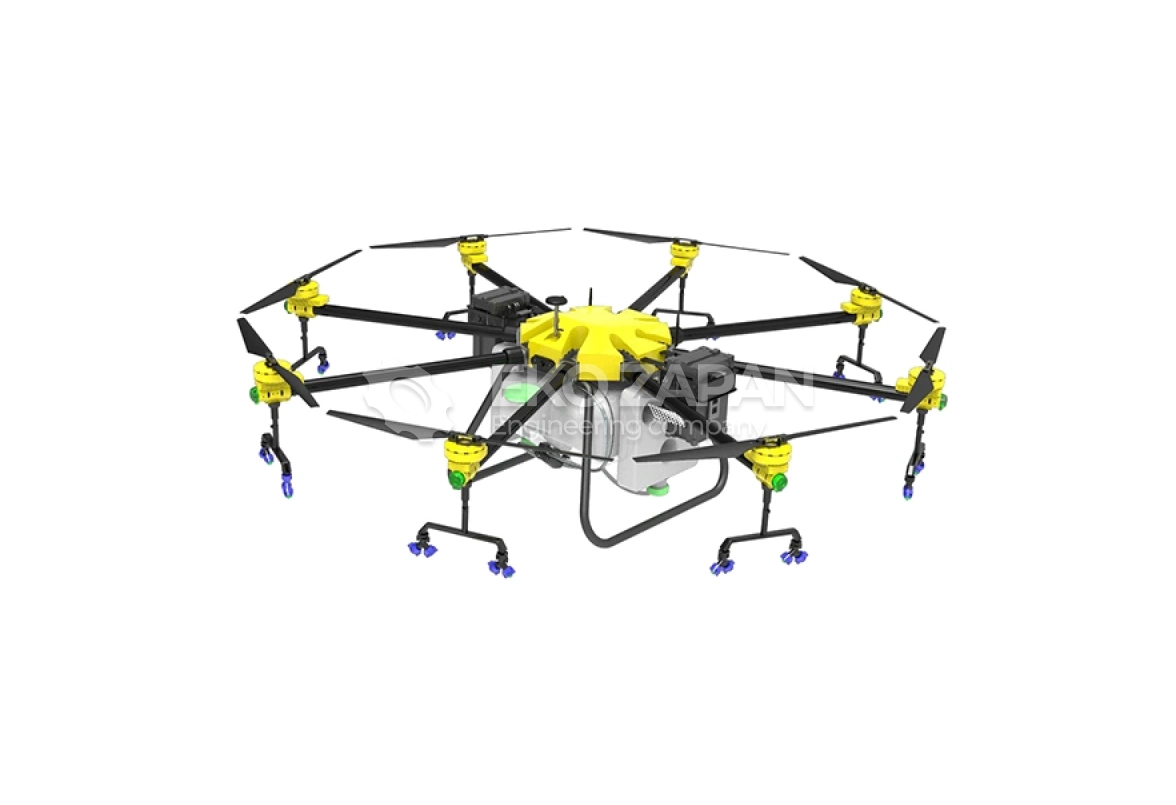

Design of the structure

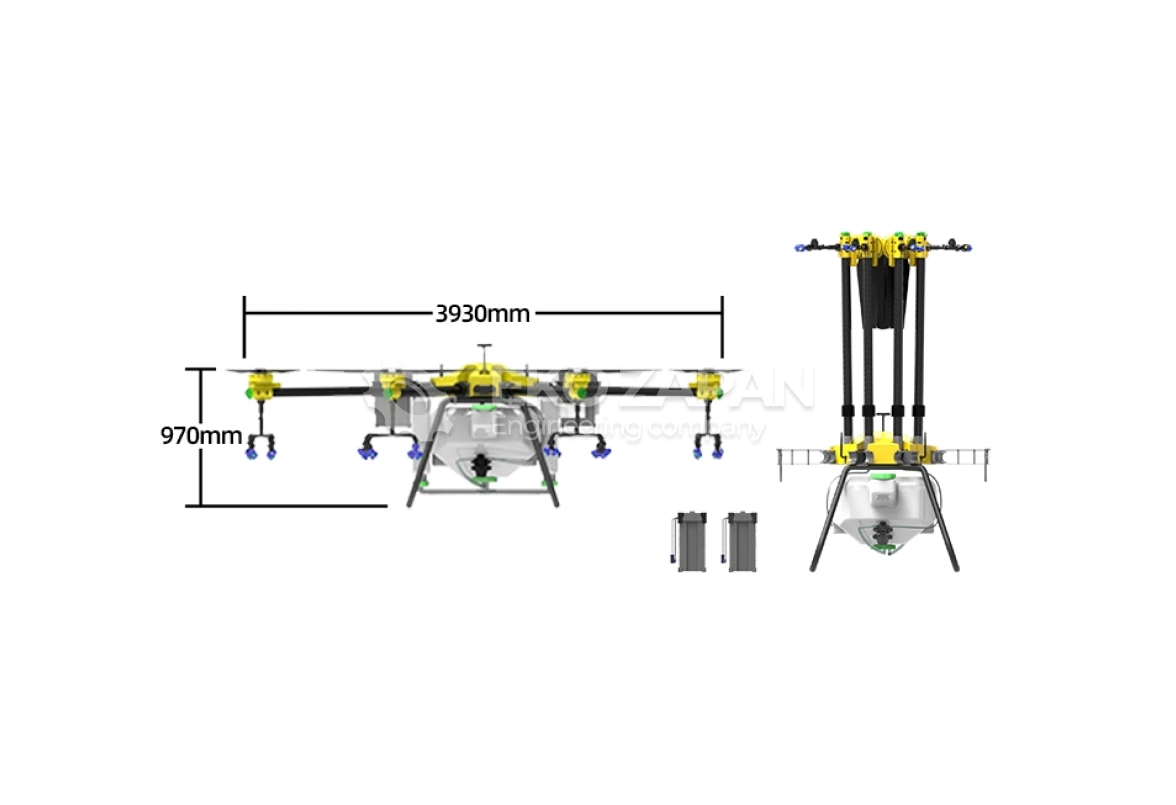

The correct eight-axis design. HF T72 has an effective spray width of more than 15 meters and is the best in its class. The body is made of carbon fiber and has an integrated design to ensure durability. The arm can be folded 90 degrees, which saves 50% of the volume during transportation and makes it easier to carry.

Radar system

• Terrain Tracking Radar: The radar sends waves with centimeter accuracy, detecting the terrain. Users can adjust the sensitivity of following the terrain depending on the type of crops and terrain, ensuring flight safety and uniform spraying.
• Obstacle Avoidance Radar Front and rear: High precision digital radar automatically detects the environment and bypasses obstacles. The radar is resistant to dust and water, which allows it to be used in most conditions.

Intelligent flight control system

The system integrates high-precision inertial and satellite navigation sensors. Sensor data is pre-processed, drifts are compensated and data is merged in the full temperature range, providing high-precision control of the position and route of the multi-rotor UAV platform.

Route planning

Drone route planning includes three modes: Plot Mode, Edge Sweeping Mode and Fruit Tree Mode.

• Plot mode: Used for standard planning. You can add up to 128 route points, set altitude, speed, obstacle avoidance mode and flight path. The data is automatically uploaded to the cloud for the convenience of subsequent spray planning.
• Edge Sweeping mode: The drone sprays the boundaries of the planned area. You can arbitrarily adjust the number of circles to perform the operation.
• Fruit Tree Mode: Designed for spraying fruit trees. The drone can hover, rotate and stop at a certain point. You can select the point or route mode to perform the operation. Setting fixed points or slopes helps prevent accidents.

The exchange of plots

Users can share plots. The plant protection team downloads plots from the cloud, edits and deletes them. You can search and find sites uploaded by customers within a five-kilometer radius and view their images.

Intelligent power supply system

The 14S 42000mAh Li-Polymer battery with high voltage and smart charger ensures stable and safe charging.

• Battery voltage: 60.9V (fully charged)
• Battery Life: 1000 cycles
• Charging Time: About 40 minutes
